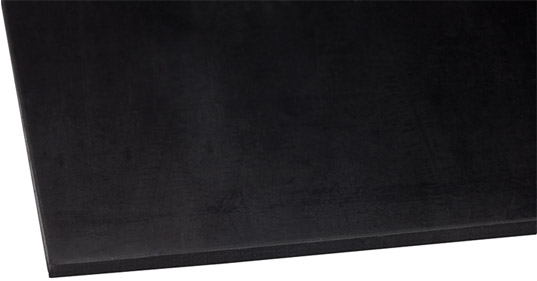

Black SBR sheet rubber with nylon reinforcement
Black SBR sheet rubber with nylon reinforcement
*Properties shown based on Rubber Manufacturers Association Sheet Rubber Handbook, second edition.
Style CI: 60 Duro hardness (Shore Durometer A)
Polymer: Styrene-Butadiene Rubber reinforced with 3.4 oz./sq. yd. nylon fabric
Common Name: Cloth-reinforced Black Rubber Sheet
ISO/ASTM Designation: SBR
Talc Free
| Style | ASTM Specification (SI units) |
Temperature Range |
Ply | Durometer | Tensile Strength (psi) |
Elongation (%) |
Finish |
|---|---|---|---|---|---|---|---|
| CI | D 2000 M2AA A13 B13 EA14 | -20°F to +170°F | 1 | 55 - 65 | 435 | 250% | Plate |
| CI | D 2000 M2AA 603 A13 B13 EA14 | -20°F to +170°F | 2 | 55 - 65 | 435 | 250% | Plate |
| CI | D 2000 M2AA 603 A13 B13 EA14 | -20°F to +170°F | 3 | 55 - 65 | 435 | 250% | Plate |
| CI | D 2000 M2AA 603 A13 B13 EA14 | -20°F to +170°F | 4 | 55 - 65 | 435 | 250% | Plate |
M2 AA 603 A13 B13 EA14
| Part Number | Gauge x Width (in) | Fabric Plies | Avg. Length (Linear ft/Roll) |
Approx. lbs/Roll |
|---|---|---|---|---|
| CI-1P02x48x67 | 1/16 x 48 | 1 Ply | 67 | 132 |
| CI-2P04x48x36 | 1/8 x 48 | 2 Ply | 36 | 140 |
| CI-2P04x48x50 | 1/8 x 48 | 2 Ply | 50 | 194 |
| CI-2P06x48x18 | 3/16 x 48 | 2 Ply | 18 | 107 |
| CI-2P06x48x50 | 3/16 x 48 | 2 Ply | 50 | 297 |
| CI-2P08x48x18 | 1/4 x 48 | 2 Ply | 18 | 140 |
| CI-2P08x48x25 | 1/4 x 48 | 2 Ply | 25 | 194 |
| CI-2P08x48x50 | 1/4 x 48 | 2 Ply | 50 | 388 |
| CI-3P06x48x18 | 3/16 x 48 | 3 Ply | 18 | 107 |
| CI-4P08x48x18 | 1/4 x 48 | 4 Ply | 18 | 140 |
